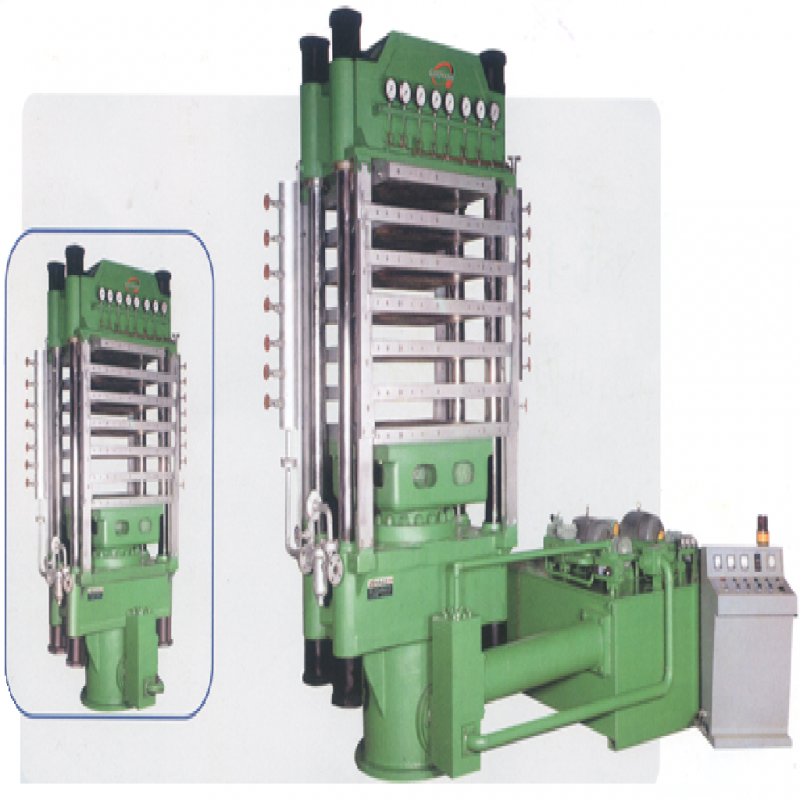

EVA Foam Compression Forming Machine

EVA Foam Compression Forming Machine

Product Features

．Integrated circuit desgin allows for convenient maintenance.
．High elevation speed offers great productivity and high efficiency.
．Automatic pressure compensation function greatly upgrades product quality.
Machine Specifications
Model  YYA-18'' YYA-22'' YYA-24'' YYA-26'' YYA-30'' YYA-32'' YYA-34''
Pressing Capacity  300tons 450tons 520tons 600tons 800tons 1000tons 1200tons
*Size of hot plate  910*910mm 910*1100mm  1000*1100mm 1100*1200mm 1200*1200mm 1350*1500mm 1400*1600mm
*Spaces between hot plates 125mm 125mm 125mm 125mm 125mm 125mm 125mm
*Number of layers 4 6 6 6 6 6 6
Speed of opening  500/3 sec 750/3 sec 750/3 sec 750/3 sec 750/3 sec 750/3 sec 750/3 sec
Speed of closing 500/20 sec 750/30 sec 750/26 sec 750/26 sec 750/26 sec 750/26 sec 750/30 sec
Motor 7-1/2HP+10HP 7-1/2HP+10HP 10HP*2 10HP*2 10HP+15HP 10HP*2+15HP 10HP*2+20HP
*are available upon customer's request.
Yang Yi reserves the right to change specifications and design characteristics without prior notice.
