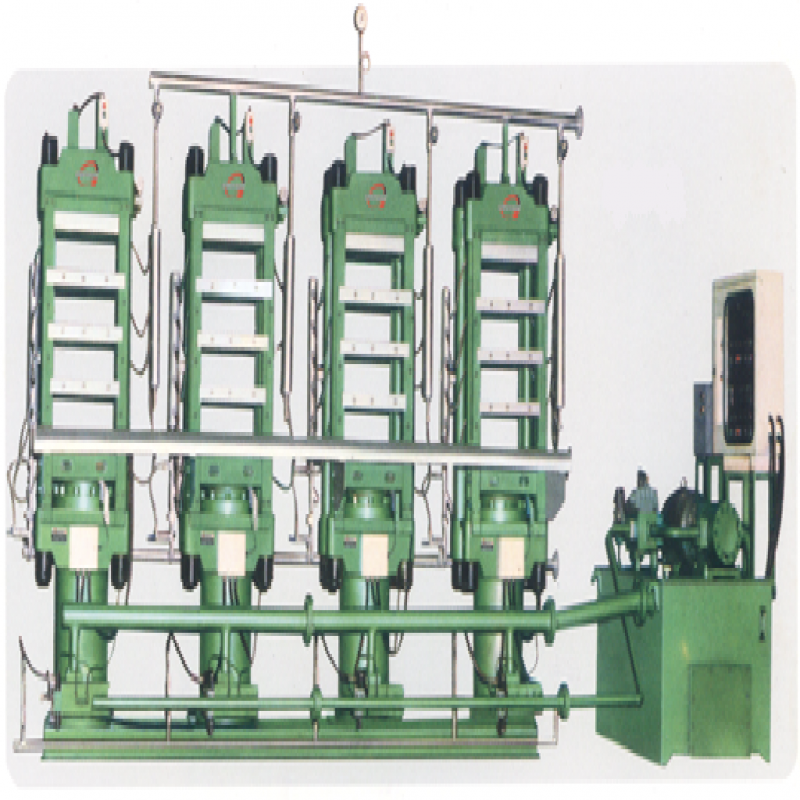

Steam Compression Forming Machine-Type A
|
Product Features ．Simlified hydraulic system provides easy operation and minmum. |
|||
| Machine Specifications | |||
| Model | YY10-4A | YY12-4A | YY14-4A |
| Pressing Capacity | 90tons | 125tons | 175tons |
| *Size of hot plate | 440*440mm | 460*460mm | 610*610mm |
| *Spaces between hot plates | 120mm | 120mm | 120mm |
| *Number of layers | 2-4 | 2-4 | 2-4 |
| Motor | 7-1/2HP | 10HP | 7-1/2HP+15HP |
| *are available upon customer's request. | |||
| Yang Yi reserves the right to change specifications and design characteristics without prior notice. | |||
